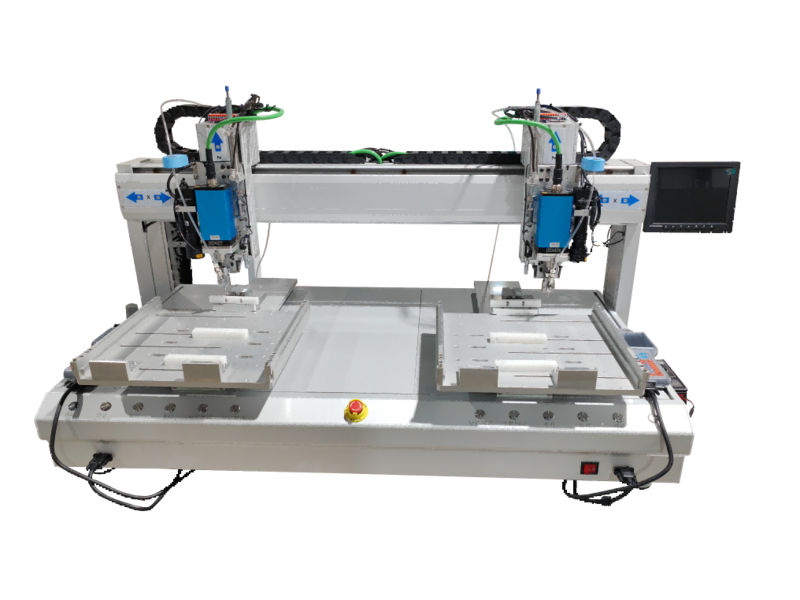

Desktop six-axis air-blow screw machine
Key specs — Weight: About 120kg; Power supply: AC220V，50Hz.
Specifications
| Screw specifications | M0.8-M2.0 |
|---|
| Screw implantation method | Blow-feed type (vibratory bowl feeding)） |
|---|
| Number of axles | 6-axis |
|---|
| Positioning accuracy | ±0.03mm |
|---|
| Repeatability | ±0.03mm |
|---|
| Simultaneously lock the number of electric screwdrivers | 2 units (servo electric screwdriver) |
|---|
| Dimensions (L*W*H) | 1200*700*760mm |
|---|
| Weight | About
120kg |
|---|
| Control method | Motion Control Card Joystick |
|---|
| Power supply | AC220V，50Hz |
|---|
| Working air pressure | 0.55-0.65MPa |
|---|
FAQ
- What is the Screw specifications of the Desktop six-axis air-blow screw machine?
- M0.8-M2.0
- What is the Screw implantation method of the Desktop six-axis air-blow screw machine?
- Blow-feed type (vibratory bowl feeding)）
- What is the Number of axles of the Desktop six-axis air-blow screw machine?
- 6-axis
- What is the Positioning accuracy of the Desktop six-axis air-blow screw machine?
- ±0.03mm
- How can I get a quotation for the Desktop six-axis air-blow screw machine?
- Contact Honred by email sales@honred.com or WhatsApp for a quotation and lead time.
- Do you ship the Desktop six-axis air-blow screw machine worldwide?
- Yes. Honred ships automation equipment worldwide with export packaging and installation support.
