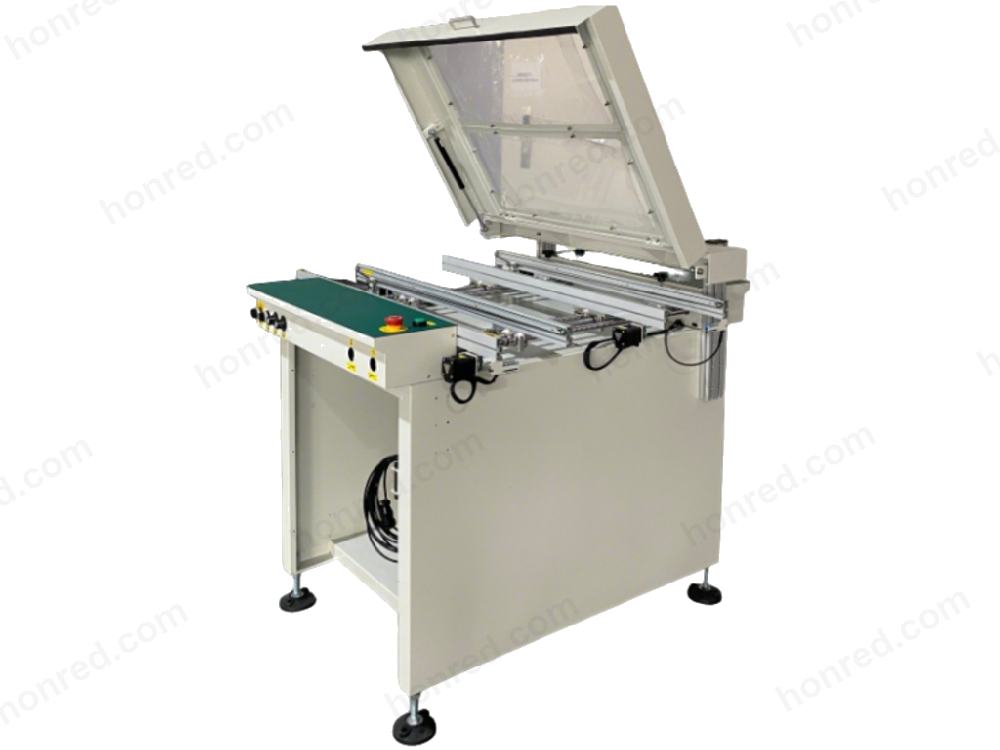

Two-rail conveying connection, connecting the equipment of the production line. Standard SMEMA interface for seamless docking with various SMT devices.
Features
Suits SMT production line connections
PCB buffering, inspection, testing or manual component insertion
Smooth parallel width adjustment, automatic
Workbench for manual placement and material staging
Variable speed control
Optional dust cover and workbench
Specifications
PCB Size
150×150mm ~ 340×270mm
PCB Thickness
0.5mm ~ 5.0mm
Conveying Speed
0.5-9m/minadjustable
Transfer Height
900 ± 20mm
Direction
Left to Right
Auto Width Adjustment
150-300mm
Belt Width
4mm, ESDanti-static belt
Power Consumption
AC 220V ±10V, 50/60Hz, Approx. 150W
Dimensions
Approx. L600 × W1600 × H1500mm
Weight
Approx. 52kg
FAQ
What is the PCB Size of the Dual rail junction table?
150×150mm ~ 340×270mm
What is the PCB Thickness of the Dual rail junction table?
0.5mm ~ 5.0mm
What is the Conveying Speed of the Dual rail junction table?
0.5-9m/minadjustable
What is the Transfer Height of the Dual rail junction table?
900 ± 20mm
How can I get a quotation for the Dual rail junction table?
Contact Honred by email sales@honred.com or WhatsApp for a quotation and lead time.
Do you ship the Dual rail junction table worldwide?
Yes. Honred ships automation equipment worldwide with export packaging and installation support.
