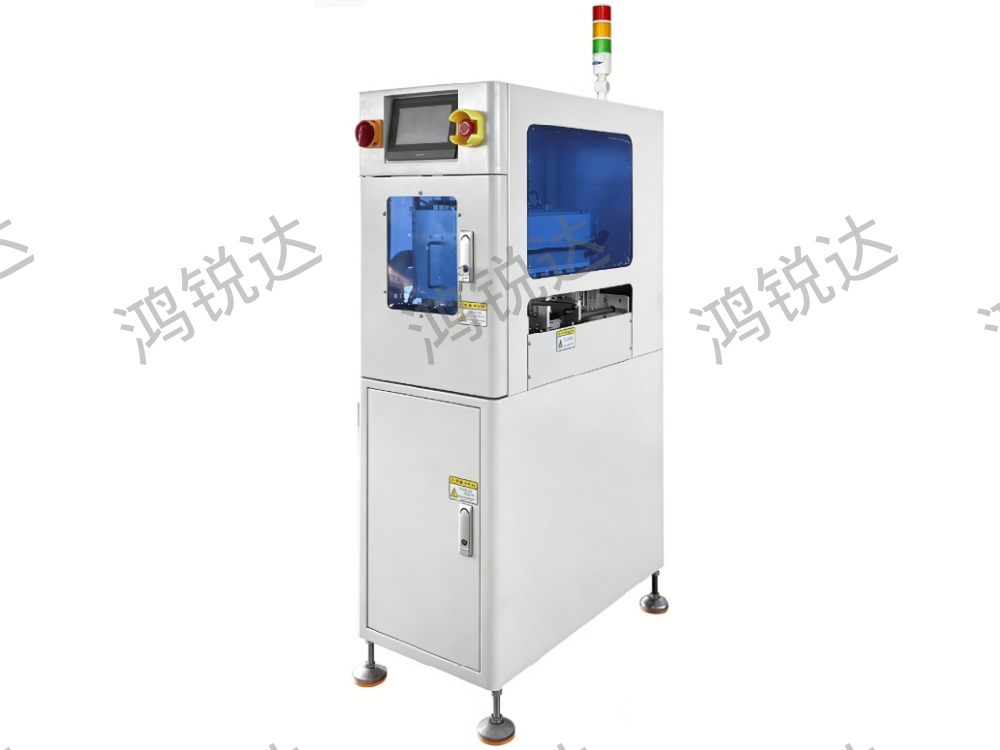

Dust Adhesion Cleaner

Dust Adhesion Cleaner

Convenient for replacing the dust-collecting roller

Features

Specifications

Parameter NameParameter value (reference）
Applicable PCB Size1 50× 1 50mm ~ 3 4 0×2 7 0mm
Belt width and roller length3mm flat belt, ESD anti-static belt, roller length 355.
Transmission height900 ± 20mm
Cycle time≥ 10S/PCS
PCB transport speed9 m / m in
PCB thickness0.4–2mm does not need adjustment, 2–5mm requires adjusting the roller height
Automatic width adjustment range1 50 ~ 3 0 0mm
Clean structureBrush sweeping, vacuuming, dust adhesion, static elimination
Voltage and Power ConsumptionAC 220V ± 10V ， 50/60Hz ，about 500W
Air pressure and gas consumption0.6MPa ， 60L/min ， 6mm trachea
Overall dimensions (standard type)about L450 × W820 × H1420mm
Overall machine weightabout 140kg

FAQ

What is the Parameter Name of the Dust Adhesion Cleaner?
Parameter value (reference）
What is the Applicable PCB Size of the Dust Adhesion Cleaner?
1 50× 1 50mm ~ 3 4 0×2 7 0mm
What is the Belt width and roller length of the Dust Adhesion Cleaner?
3mm flat belt, ESD anti-static belt, roller length 355.
What is the Transmission height of the Dust Adhesion Cleaner?
900 ± 20mm
How can I get a quotation for the Dust Adhesion Cleaner?
Contact Honred by email sales@honred.com or WhatsApp for a quotation and lead time.
Do you ship the Dust Adhesion Cleaner worldwide?
Yes. Honred ships automation equipment worldwide with export packaging and installation support.
