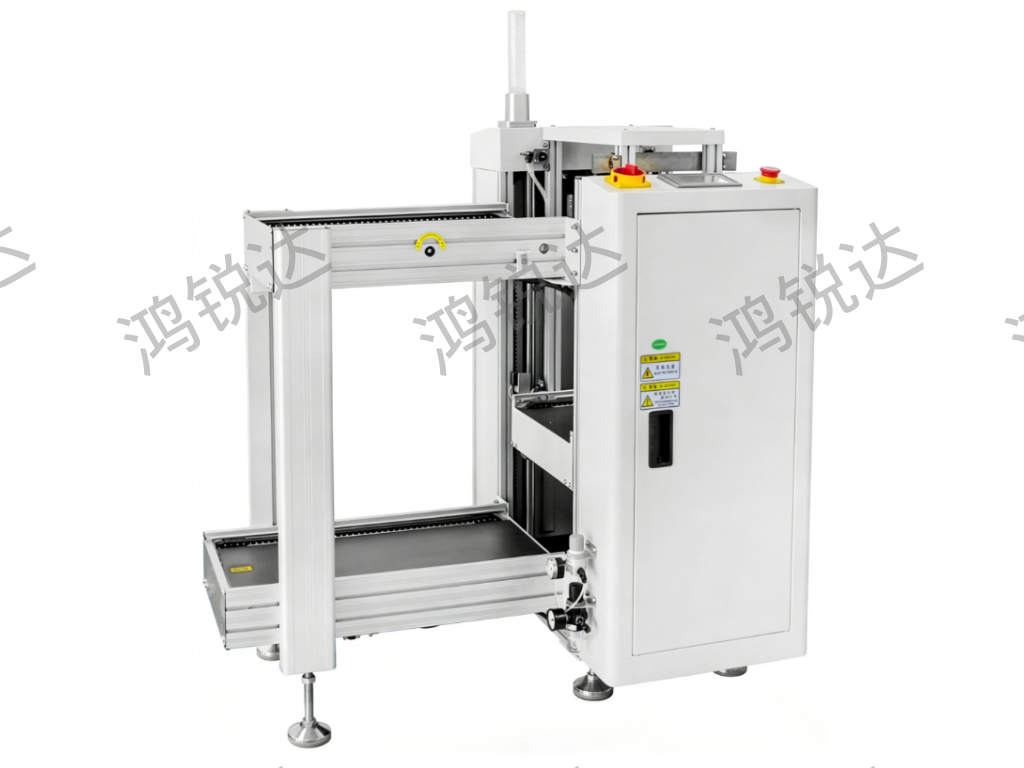

Feeder Machine

Automatic feeding: Automatically takes PCBs from the rack one by one and sends them to the production line conveyor track, no manual intervention required

Features

Automatic feeding: Automatically takes PCBs from the rack one by one and sends them to the production line conveyor track, no manual intervention required
PLC control system with touchscreen operation: User-friendly interface, easy to operate
Multiple pitch selection: Supports 10/20/30/40/50mm pitch settings, suitable for PCBs of different thicknesses
SMEMA standard interface: Complies with SMEMA communication standards, can seamlessly connect with upstream and downstream equipment to achieve line automation
Automatic alarm system: Automatically alarms in case of board missing or board jamming, ensuring production safety
Wide-range automatic adjustment: The guide rail width can be automatically adjusted according to the PCB size
Standard conveyor height: Conveyor height is 900±20mm, complying with SMT industry standards
Optional conveyor direction: Left in, right out

Specifications

Parameter Name	Parameter Value (Reference)
Applicable PCB Size	1 50× 1 50mm ~ 3 4 0×2 7 0mm
PCB Thickness	0. 5 mm ~ 5 .0mm
Transmission height	900 ± 20mm
Transmission Direction	Left → Right
Boarding efficiency	About 6~10 seconds per piece
Material frame size capacity	Material frame W355 × L320 × H565mm, one on top and two below.
Spacing selection	10 / 20 / 30 / 40 / 50mm
Belt width	4mm ， ESD anti-static belt
Power and Power Consumption	AC 220V ±10V， 50/60Hz ，about 100~180W
Air Source and Air Consumption	0.6MPa ， Gas consumption 5L/min, trachea 6mm
Overall dimensions (for reference)	about L1350 × W 84 5 × H1 5 00mm
Overall machine weight	about 1 7 0kg
Communication interface	SMEMA Standard Signal Interface
