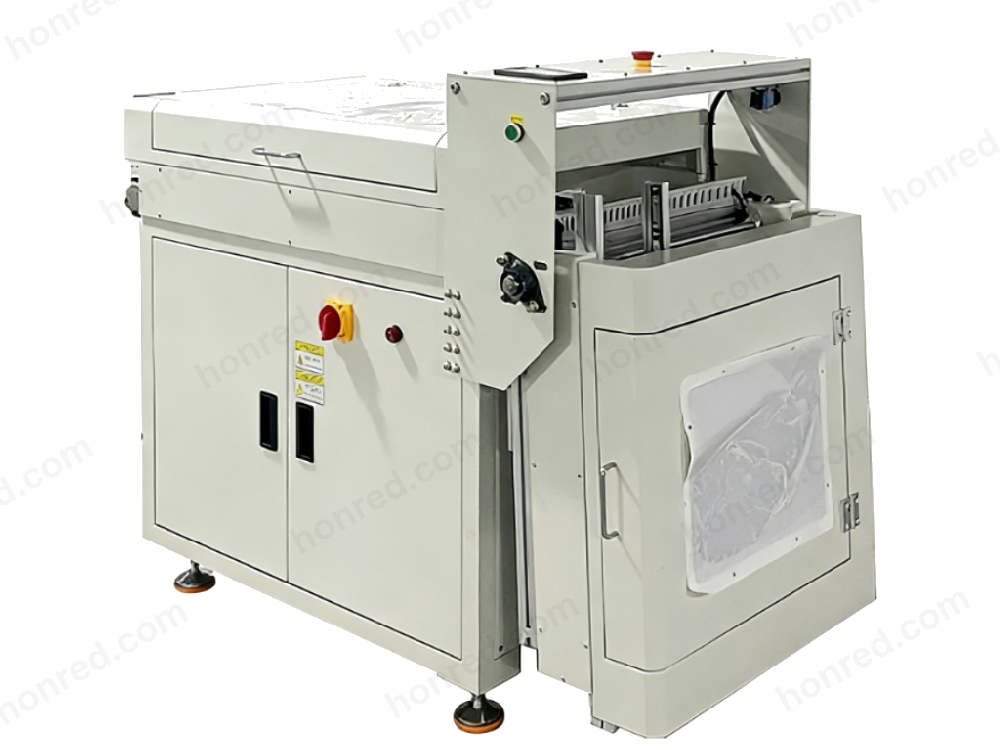

Folding Conveyor
Foldable conveyor design, space-saving, easy for transportation and storage. Suitable for temporary production lines or exhibitions.
Features
- Downward folding structure with pneumatic buffer design
- Smooth and controlled folding, enables quick closure
- Saves workshop space, suitable for aisle connections
- Lightweight folding support with hinges and support arms
- Automatic width adjustment with variable speed control
- Optional with or without dust cover
- One-button fold control, restore from the other side after passing
Specifications
| PCB Size | 150×150mm ~ 340×270mm |
|---|
| PCB Thickness | 0.5mm ~ 5.0mm |
|---|
| Conveying Speed | 0.5-9m/minadjustable |
|---|
| Transfer Height | 900 ± 20mm |
|---|
| Direction | Left to Right |
|---|
| Auto Width Adjustment | 150-300mm |
|---|
| Belt Width | 4mm, ESDanti-static belt |
|---|
| Power Consumption | AC 220V ±10V, 50/60Hz, Approx. 150W |
|---|
| Air Supply | 0.6MPa, no consumption normally, cylinder use during folding, 6mm tube |
|---|
| Dimensions | Approx. L1200mm [expanded] x W1000mm x H1200mm |
|---|
| Weight | Approx. 95kg |
|---|
FAQ
- What is the PCB Size of the Folding Conveyor?
- 150×150mm ~ 340×270mm
- What is the PCB Thickness of the Folding Conveyor?
- 0.5mm ~ 5.0mm
- What is the Conveying Speed of the Folding Conveyor?
- 0.5-9m/minadjustable
- What is the Transfer Height of the Folding Conveyor?
- 900 ± 20mm
- How can I get a quotation for the Folding Conveyor?
- Contact Honred by email sales@honred.com or WhatsApp for a quotation and lead time.
- Do you ship the Folding Conveyor worldwide?
- Yes. Honred ships automation equipment worldwide with export packaging and installation support.
