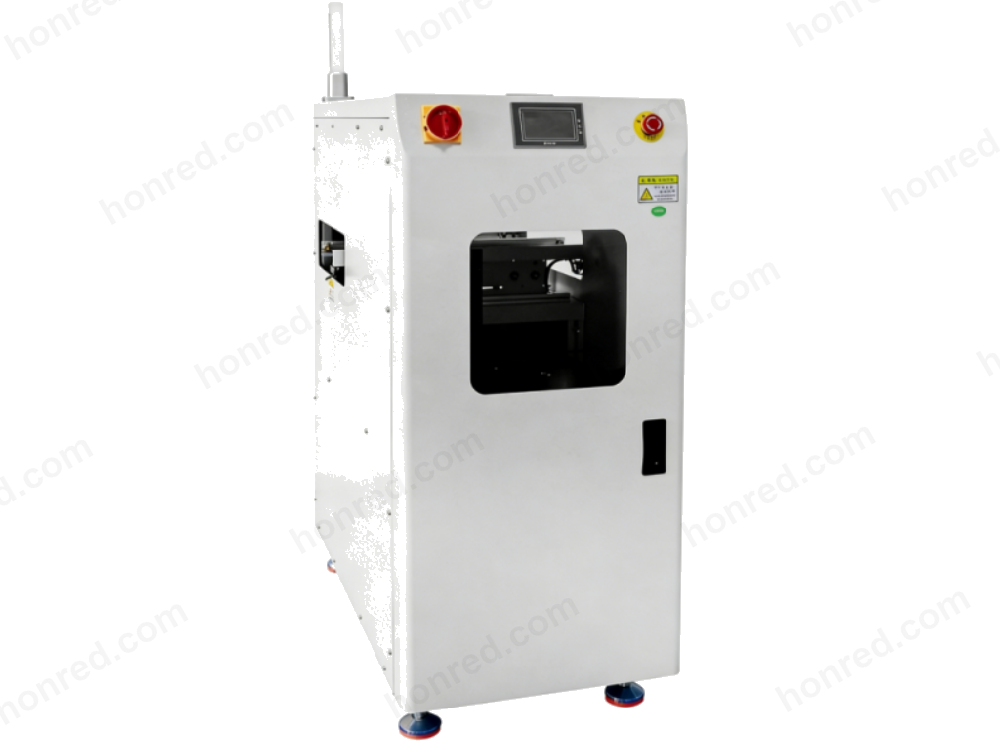

Automatic PCB loading equipment, stable and efficient. Uses vacuum suction cups or grippers to pick up boards and automatically feed them into the production line.

Features

Specifications

PCB Size150×150mm ~ 340×270mm
PCB Thickness0.5mm ~ 5.0mm
Transfer Height900 ± 20mm
DirectionLeft to Right
Loading EfficiencyApprox. 6-10s/PCB
Magazine CapacityMagazineW355×L320×H565mm, 1-up 2-down
Pitch Options10 / 20 / 30 / 40 / 50mm
Belt Width4mm, ESDanti-static belt
Power SupplyAC 220V ±10V, 50/60Hz, Approx. 100~180W
Air Supply0.6MPa, air consumption5L/min, air tube6mm
DimensionsApprox. L1350 × W845 × H1500mm
WeightApprox. 170kg
CommunicationSMEMAstandard signal interface
